THE RIGHT CHOICE FOR YOUR BUSINESS TODAY

NovaDom 4000

NovaDom 4000

Quality Printers Pride!!

Product Description & Application

NovaDom 4000 is a premium polyester plate for sheet-fed small offset printing. It can be imaged directly through a laser printer or copier and does not require any exposing, processing or fusing. Just mount the plate on the press and print. NovaDom 4000 Plus is ideally suitable for quality short run print applications such as Literatures, Bill books & Memorandums.

Features & Benefits
  • Double sided plate to facilitate imaging & printing on either side
  • Unbeatable resolution to give halftone dot range from 3-97%
  • Inventive surface coating to give long run-length up to 10,000 impressions from each side of the plate
  • Unique EzeeKleen formulation for scum-free background during start-up and press stoppages
  • Innovative AntiGrease layer safeguards the surface from finger prints or marks
  • User-friendly QuicKling treatment that ensures that the plate fits closely around the plate cylinder, facilitating quick make readies
  • The plate does not require baking or cleaning
  • Universally compatible with most laser plotters and laser printers
Product Specifications

  • Base:Dimensionally stable polyester film

  • Total Thickness:100 microns (±3 mic)

  • Coating:Single side coated. Coating side is identifiable through a notch on the right side when plate is held in portrait form

  • Print Run*:5000 impressions

  • Plate Sizes:216 mm x 368 mm, 216 mm x 394 mm, 260 mm x 400 mm 225 mm x 368 mm, 254 mm x 381 mm(Also available in custom sizes on request)

  • Available Packing:100 sheets.

  • Shelf-life:One year from the date of manufacture when stored in original packing at 20-25oC and 50-65% RH.

  • Fusing of the Plate:NovaDom Platinum plate does not require fusing (baking) or cleaning * Print run is dependent and subject to recommended press conditions.

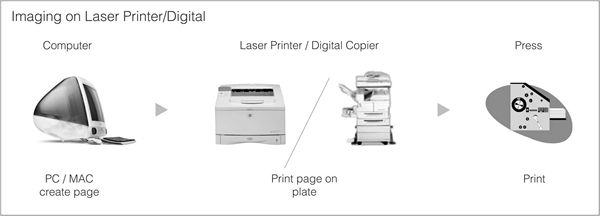

Work Flow

4000Workflow

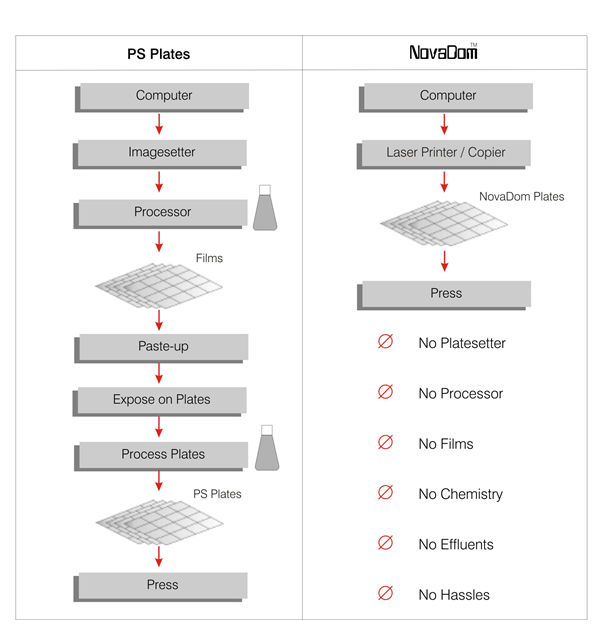

Conventional v/s CtPoli Laser System

NovaDomUMR
